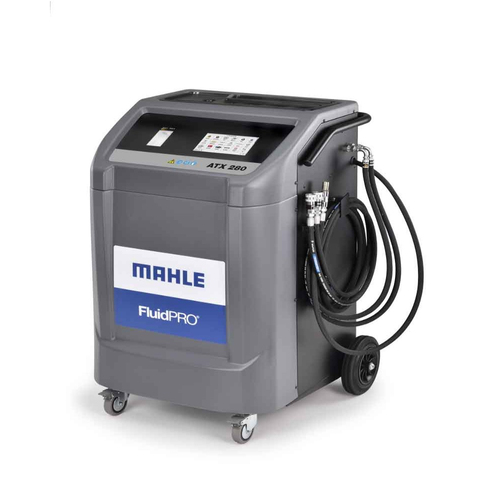

FluidPRO Automotive ATX-280 Automatic Transmission Fluid Exhange MachineWith Adapter set
Article number198518601
| Quantity (Pack Size: 1) | Unit Price |
|---|---|
| 1 (Min) | $11,873.040 |
| $11,873.040 |
This article ships from a third-party supplier.
The ATX-280 is a new design in the FluidPRO® line, featuring a large touch display and a modern graphical interface. This upgrade simplifies operation and automatically supports any oil flow operation in automatic transmissions.
The software integrates the database and step-by step process. The station automatically detects the direction of oil flow in the transmission, preventing any potential damage to the system.
When connected to WiFi, the machine supports constant updates and remote assistance through Re.Solve, as well as the ability to print final reports directly from your workshop PC using Nexus Print.
The dedicated app enhances workshop productivity by allowing the operator to move freely while maintaining full control over all ongoing phases. The interchangeable tank enables quick oil type changes and guarantees purity through an internal washing process called Zerocross- Contamination. The ATX-280 is available now.
Features:
• 7" touch screen LCD display
• New design, same as MAHLE A/C stations
• New GUI, even easier to use
• WiFi connection
• App for remote display
• On-board vehicle database with transmission pictures, service info, fill capacities, and oil type
Specifications:
• Control: Automatic, software-assisted with 7“color touch display
• New oil filter: 90μ mesh filter
• Sight glasses: Visual inspection of oil quality
• Dipstick function: Integrated with hoses ø6mm and ø10mm
• Zero-cross-contamination: Circuit cleaning function after oil type change
• Hoses: 2 x 3 m (service hoses), 1 x 1.5 m (for draining the waste oil)
• BOOST function: Integrated
• Service report print function: Via WiFi (NEXUS print) or USB export
• Top grid: With A/T adapters tray
• Oil pump: 1 hydraulic oil pump of 8 l/min and 1 hydraulic oil pump of 6 l/min; PWM-controlled
• Menu languages: 15 different languages
• Power supply: 110/230 V, 50-60Hz
• Service and software update: Via WiFi connection, Re.Solve function via WiFi
• Smartphone App: FluidPRO® ATX Remote Viewer
• Dimensions / weight (H × L × W): 120 x 74 x 74 cm, 62
