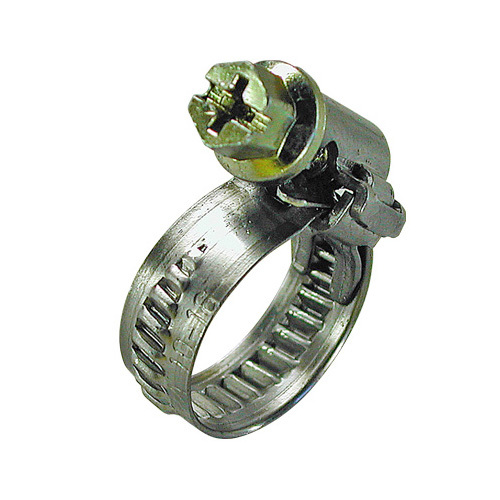

Zebra Clamp 8X12 6MM Hex Drive
Article Number:0539812
Quantity (Pack Size: 50) Unit Price
50 (Min) $1.526

Total:  $76.300

In Stock

7.5mm Band Width 6mm slot/phillips hex yellow chromate screw

Clamping Range
8 mm - 12 mm

  • Features an “outrigger” support that prevents clamp tilting when tightening
  • No edge pressure prevents hose damage or gouging
  • Housing saddle is not welded or riveted, lays flat on inside of band
  • Band is embossed, is smoothed off and has raised edges to prevent damaging the hose

Asymmetrical body

  • Even distribution of force
  • Clamp head does not tilt away during tightening

Smooth / indented strap interior, round edges
Prevents injury and hose damage


  • Fuel line systems
  • Lines carrying air
  • Cooling water / Heating
  • General retainer / Fastener

The off-centered cradle prevents tilting of the clamp when tightening, thus preventing hose damage.

The outer edge support directs the end of the clamp away from the head of the screw during tightening.

Short saddle, without welds or rivets fits snugly within the clamp, giving uniform pressure over the entire contact area of the clamp.

Embossed clamp band and rounded elevated edges prevent any damage to the hose surface.

Technical Data
Material of strap / body 1.4016 stainless steel F1
Material of screw Galvanized steel, passivated, sealed
Screw type Phillips head
Strap width 7.5mm / 9mm / 12mm
Size strap width 7.5mm = 6mm
strap width 9 and 12mm = 7mm
