| Quantity (Pack Size: 10) | Unit Price |
|---|---|
| 20 (Min) | $4.070 |
| $4.070 |
Original Nord-Lock wedge lock technology with / CE marking and laser marking. For effective thread locking on laterally loaded, vibrating screw connections and screw connections subject to oscillations to prevent self-turning.
General: Original Nord-Lock wedge lock washers secure screw connections that are subject to severe vibrations and dynamic loads.
Corrosion resistance: High level of corrosion resistance (at least 1,000 hours in salt spray test in accordance with ISO 9227)
Function: Highly secure locking as wedge surfaces slope up between the two lock washers. The screw connection is locked by pretension instead of by friction.
Advantages:
• Quick and easy installation/removal with standard tools
• Secure locking even with lubrication
• Reliable securing - even for screw connections with short clamping lengths
• Reusable (depending on operating environment)
• Laser marking for continuous traceability
• Designed for screws up to and including strength class 12.9 (steel) and A4-80 (high-grade steel)
Note: For the recommended tightening torques, please see the technical information from the manufacturer.

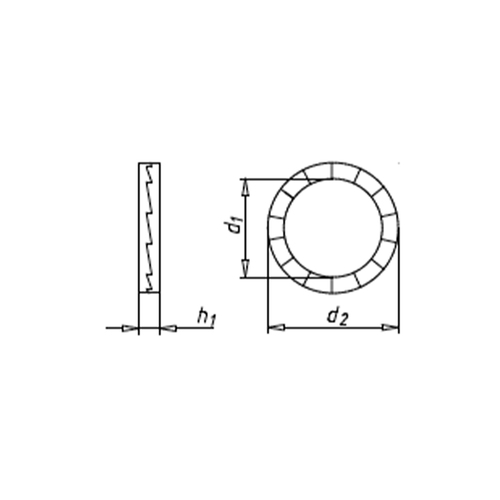

Internala Diameter: 15.2mm
Suitable for Screw Thread: M14
Suitable for Thread (Imperial): 9/16"
Outer Diameter: 23mm
Thickness: 3.4mm
MOQ: 10
Material: Steel
Surface: Flake zinc silver
Corrosion protection period: 1000 h
RoHS-compliant: Yes
Design: Narrow
Locking function: Locking against self-loosening by mechanical interlocking
