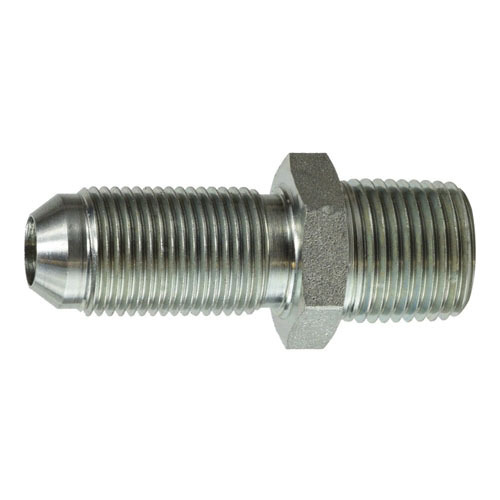

Bulkhead Connector Steel 1-1/4 in. 37 deg JIC Flared x 1-1/4 in. MPT
The Bulkhead Connector is designed specifically for automotive and industrial applications that require reliable fluid connections. This high-quality connector is essential for establishing a secure link between different components, ensuring the integrity of your fluid systems. It facilitate the passage of hydraulic fluids and gases while providing a robust and leak-proof connection. It is particularly useful in situations where hoses or pipes need to penetrate a bulkhead or barrier, making it an invaluable component in various automotive setups, including hydraulic systems and cooling applications.
Features:- Made from high-grade steel, this connector offers exceptional strength and resistance to harsh environments
- Designed to withstand high pressure and temperature fluctuations, the Bulkhead Connector ensures consistent performance in demanding automotive environments
- The 37-degree Joint Industrial Council (JIC) flared fitting creates a secure connection with a leak-proof seal and ensures efficient operation in hydraulic circuits
Specification:
- Connection 1: 1-1/4 in. 37 deg JIC Flared
- Connection 2: 1-1/4 in. MPT
- Fitting Type: Connector
- Material: Steel
- Maximum Operating Pressure: 2500 psi
- Operating Temperature: 375 deg F
- Thread Size: 1-5/8 in. - 12
