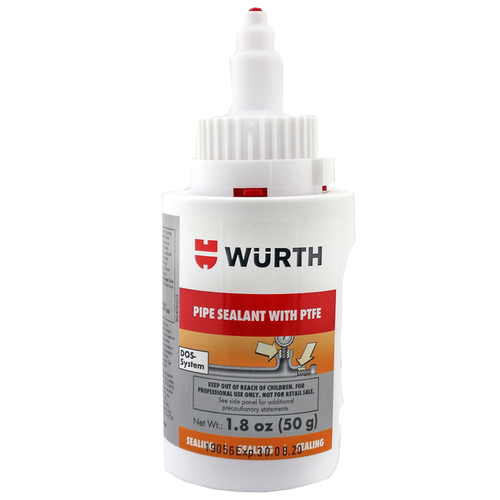

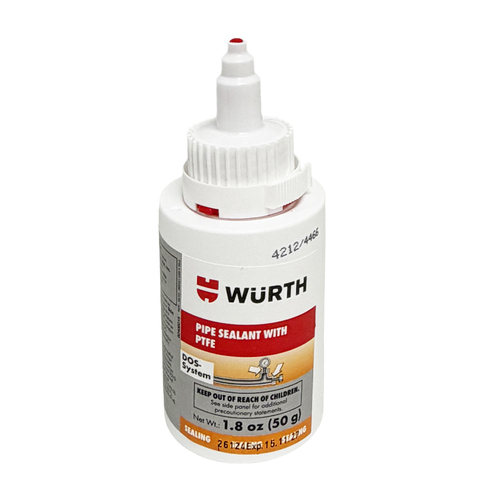

DOS Pipe Sealant with PTFE 1.76 oz.
Article number0893511050 SDS
Quantity (Pack Size: 1) Unit Price
(Min) $57.080
$57.080

Total:  $57.080
Availability:

In Stock

Register or log in to your Wurth Account to view your custom pricing and to order professional products.

Pipe Sealant



Description

1.76 oz. DOS

Physical Properties

Chemical description: Methacrylic ester
Color: White
Setting to the touch after: 15 - 30 minutes*
Final setting after: Approximately 12 hours*
Break-loose torque: 5 - 8 Nm (M10)
Just-move torque after hardening: 4 - 7 N/mm2
Temperature range: -67?F to +392?F
Usable strength after: 1 - 3 hours*
Maximum thread diameter: R 3 in. (M80)
Maximum gap filling capacity: 0.50 mm
*material-dependent



Copper:
Gas = Not Suitable, Water up to +104?F = Not Suitable, Water from +104?F to +149?F = Not Suitable, Water over +149?F = Not suitable

Brass:
Gas = Suitable, Water up to +104?F = Suitable, Water from +104?F to +149?F = Not Suitable, Water over +149?F = Not Suitable

Bare steel*
Gas = Suitable, Water up to +104?F = Suitable, Water from +104?F to +149?F = Suitable, Water over +149?F = Not Suitable
*and hot galvanized pipes with a thread

For the sealing of all metallic pipe connections and fittings with conical/cylindrical threads pursuant to DIN 2999. Low-strength product with PTFE

Features
Tested quality

- DVGW-approval (Reg. No.
NG-5146BM0336+0037), tested in accordance with DIN EN 751-1
- NSF-tested pursuant to NSF/ANSI 61
- Tested oxygen compatibility (PTFE pipe sealant)
Immediate sealing at up to 5 bar
- Tightened connections can be loaded up to approx. 5 bar
- After final hardening, they can be loaded up to the burst pressure of the pipes.
Great media resistance
- Neutral behavior in comparison to most industrial liquids and gases
Solvent-free
Sealing compound does not leak out of thread
Quick and secure mounting

Resistance to chemicals and gases: see resistance list.

Uses
The thread must be dry, dust and grease-free and capable of bearing loads. Tighten it (> 5 Nm), but do not turn the thread further.

Note
Not suitable for screw connections containing copper (brass, bronze, red brass) that come into contact with water over 40°C. Not permitted for gas connections in buildings in Germany. Pursuant to TRGI ’86/96.
The thread must be cut in accordance with the standard. During and after hardening of the product, the connections may not be rotated, i.e. readjustment­ is not permissible.



WarningThis product can expose you to Cumene which is known to the State of California to cause cancer , and Ethylene Glycol which is known to the State to cause birth defects or other reproductive harm.

For more information go to: https://www.p65warnings.ca.gov/
