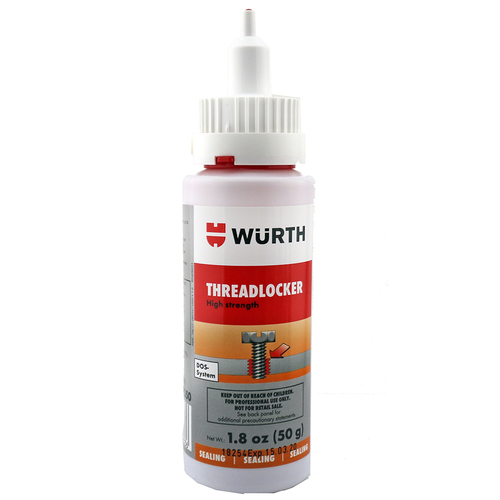

DOS Thread Locker Red 1.76 Oz
Article number0893271050 SDS
Quantity (Pack Size: 1) Unit Price
(Min) $60.070
$60.070

Total:  $60.070
Availability:

In Stock

Register or log in to your Wurth Account to view your custom pricing and to order professional products.

Threadlocker - High Strength



Description

1.76 oz. DOS

Physical Properties (in liquid state)

Chemical description: Dimethylacrylate
Color: Red
Viscosity/77?F Brookfield(RTV): 400 - 600 mPas (spindle rpm: 2/20)
Density: 1.11 g/cm3
Maximum thread diameter: M20
Maximum gap filling capacity: 0.15 mm
Flash point: > 212?F
Shelf life: 1 year at room temperature





Physical Properties (in cured state)

Hand-tight after: 10 - 20 minutes
Usable after: 1 - 3 hours
Final strength after: 5 - 10 hours
Initial breakaway torque: >30 Nm (M10)
Continuing torque: >45 Nm (M10)
Pressure shearing strength (DIN 54452): 12 - 15 N/mm2
Operating termperature range: -67?F to +302?F



Screw retaining and ­sealing compound – ­hardly removable. For securing, attaching and sealing of screws, studs bolts, nuts, threaded ­inserts and plugs, which are not required to be removed under normal circumstances.

Features
Particularly well-suited for heavy duty screw connections

- No additional securing devices required
Removable only after heating to 572°F!
- Under normal conditions only removable with special tools and/or heating
Outstanding resistance to chemicals and heat
- Universal product with a wide range of applications
Prevents loosening caused by, for instance, vibrations or impact
- No safety problems, unlike, for instance, with mechanical screw retainers



WarningThis product can expose you to Cumene which is known to the State of California to cause cancer, and Ethylene Glycol which is known to the State to cause birth defects or other reproductive harm.

For more information go to: https://www.p65warnings.ca.gov/
