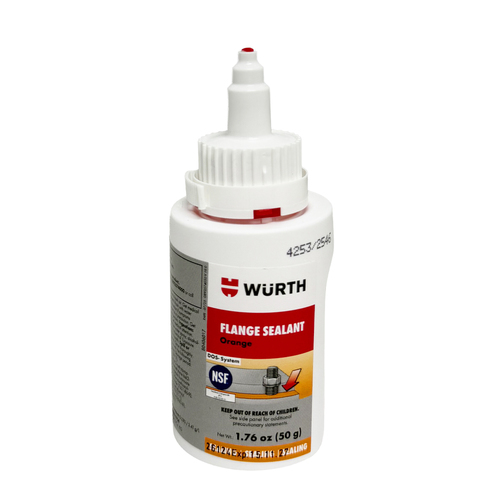

DOS Flange Sealant Orange 1.76 Oz
Article number0893574050 SDS
Quantity (Pack Size: 1) Unit Price
(Min) $70.350

Total:  $70.350

In Stock

Register or log in to your Wurth Account to view your custom pricing and to order professional products.

Flange Sealant - Orange



1.76 oz. DOS

Physical Properties (in liquid state)

Chemical description: Dimethylacrylate
Color: Orange
Viscosity/77?F Brookfield(RTV): 80,000 - 1200,000 mPas (spindle rpm: 6/2.5)/30,000 - 40,000 mPas (spindle rpm: 6/20)
Density: 1.05 g/cm3
Flash point: > 212?F
Shelf life: 1 year at room temperature



Physical Properties (in cured state)

Hand-tight after: 10 - 20 minutes
Usable after: 3 - 6 hours
Final strength after: 6 - 24 hours
Initial breakaway torque: 17 - 22 Nm (M10)
Continuing torque: 13 - 17 Nm (M10)
Pressure shearing strength (DIN 54452): 5 - 10 N/mm2
Tensile Strength: 8 - 10 N/mm3 (ASTM-D-2095)
Impact Shearing Strength: 5 - 10 Nmm/mm2 (ASTM-D-950)
Operating termperature range: -67?F to +302?F


For sealing of flanges and surfaces with a gap of 0.5 mm max. Replacement for solid seals.

Large gap filling capability

- Completely fills rough surfaces

WarningThis product can expose you to Cumene which is known to the State of California to cause cancer , and Ethylene Glycol which is known to the State to cause birth defects or other reproductive harm.
